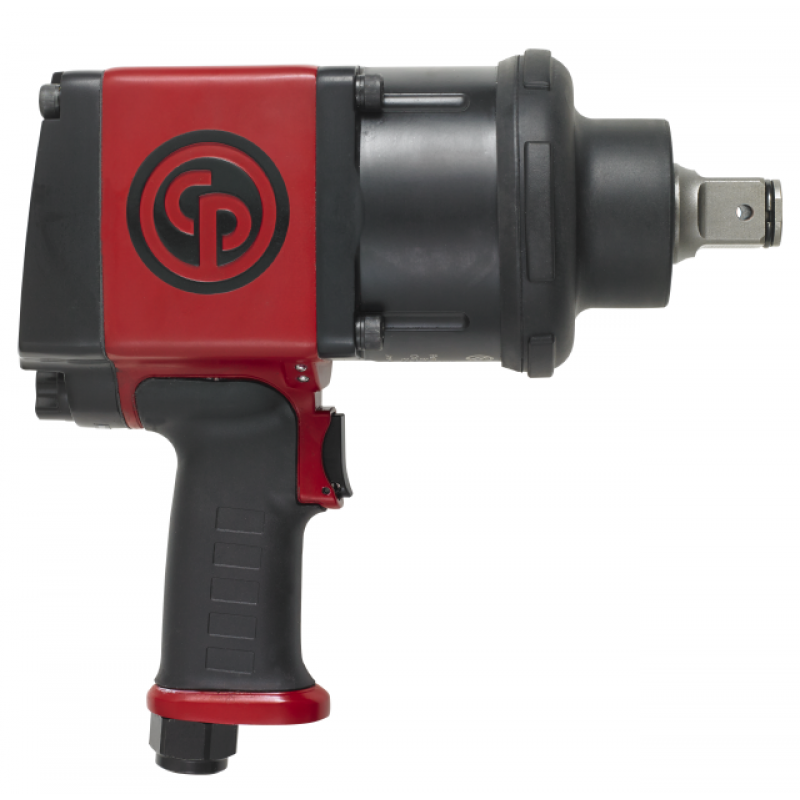

CP7776 Chicago Pneumatic 1" Impact Wrench

CP7776 Chicago Pneumatic 1" Impact Wrench

Free Shipping Orders Over £250

UK Mainland Deliveries

All Prices Exclude VAT

  • £578.11

    Benefits

  • High Torque & Powerful
  • Durable
  • Comfort & Great Handling
  • Useful
  • Safe

    Features

  • 2400 Nm – 1770 ft.lbs maximum torque in reverse
  • Pin less closed reinforced rocking dog clutch mechanism
  • TPR handle & side handle - being able to rotate in 4 positions
  • Regulator integrated in forward/reverse knob with 3 positions power setting in both directions
  • Rubber bumper protecting both applications & tool (included)
  • Socket retainer ring combined with hole retainer
  • Handle being able to rotate in 4 positions for ultimate operator comfort
  • Angled down exhaust blows air away from work place
ModelCP7776
Handle typePistol
Square drive1"
Working Torque Range (fwd)955 - 2073  Nm704 – 1530
Working Torque Range (fwd)704 – 1530 ft.lbs955 - 2073
Maximum Torque (reverse)2400 Nm1770 ft.lbs
Maximum Torque (reverse)1770 ft.lbs2400 Nm
Free speed5000 rpm
Net weight24.7 lb11.2 kg
Net weight11.2 kg24.7 lb
Power/weight ratio214.3 Nm/kg71.7 ft.lb/lb
Power/weight ratio71.7 ft.lb/lb214.3 Nm/kg
Length11.4"289 mm
Length289 mm11.4"
Side to center109 mm4.3"
Side to center4.3"109 mm
Average air consumption8.2 cfm
Average air consumption3.9 l/s8.2 cfm
Actual air consumption33 cfm
Actual air consumption15.6 l/s33 cfm
Air inlet thread size0.5 "
Min. hose size13 mm1/2"
Min. hose size1/2"13 mm
Sound pressure93 db(A)
Sound Power104 db(A)
Vibration α (ISO-28927-2)8.7 m/s²
Vibration K (ISO-28927-2)2.8 m/s²
Socket retainerDual (hole+friction)
Clutch typePin less closed rocking dog
