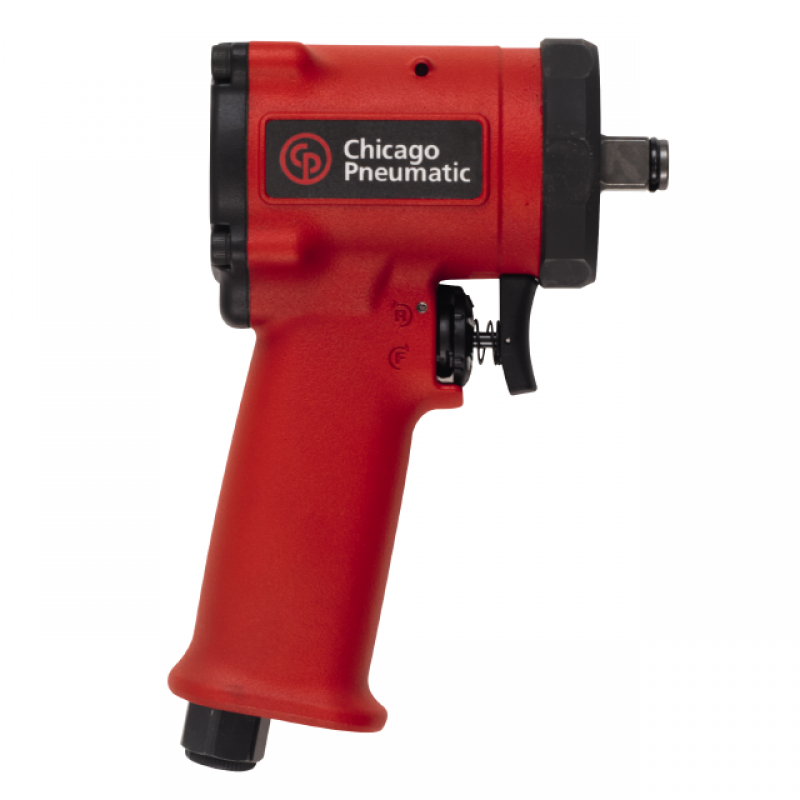

CP7732 1/2" Impact Wrench Air Tool

CP7732 Benefits

• Best power to weight ratio: 450 ft-lbs / 610 Nm
• Ultra compact
• Easy to use
• Durable



CP7732 Features

• Steel front cover & Aluminum body
• One hand operation forward – reverse by either left or
• right handed users
• 3 setting positions
• Only 4.4'' long
• Jumbo hammer



CP7732 Technical Spec

• Model: CP7732
• Handle type: Pistol
• Square drive: 1/2"
• Working Torque Range (fwd): 138-420 Nm / 102-310
• Maximum Torque (reverse): 610 Nm / 450 ft.lbs
• Free speed: 9000 rpm
• Blows per minute: 1400
• Power/weight ratio: 469.2 Nm/kg / 155.2 ft.lb/lb
• Length: 112 mm /4.4"
• Side to center: 25 mm / 1"
• Average air consumption: 2.4 l/s 5 cfm
• Actual air consumption: 9 l/s 19.6 cfm
• Air inlet thread size: 0.25 "
• Min. hose size: 10 mm / 3/8"
• Noise level: 95 db(A)
• Sound Power: 106 db(A)
• Vibration: α (ISO-28927-2) 12.1 m/s²
• Vibration: K (ISO-28927-2) 4.4 m/s²
• Socket retainer Friction ring
• Clutch type: Single dog clutch
