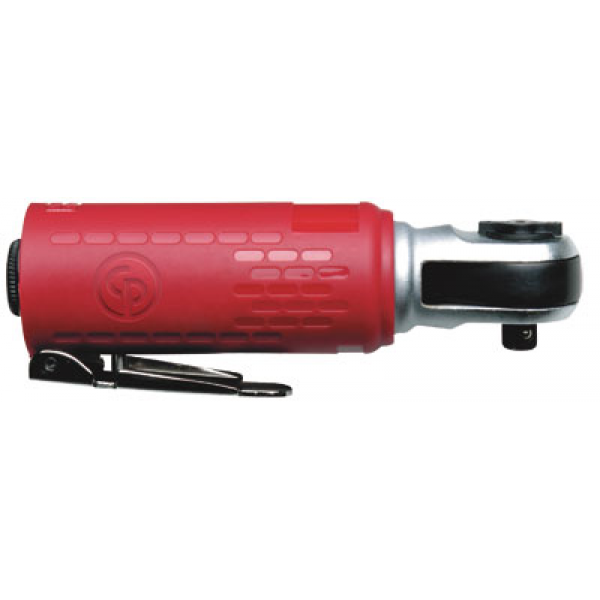

CP9426 1/4" Ratchet Wrenches Chicago Pneumatic
Click Image for Gallery
Free Shipping Orders Over £250
UK Mainland Deliveries
All Prices Exclude VAT
- Brand: Chicago Pneumatic Vehicle Service
- Product Code: CP9426
- Availability: In Stock
- £117.33
- Most powerful of its class
- Operator comfort
- Compact and lightweight
Benefits
- 1/4" mini ratchet
- High power: 27 ft.lbs (35 Nm)
- One of the smallest ratchets only 5.1" (130mm) long
- Rubber grip
Features
| Model | CP9426 | |
| Square drive | 1/4" | |
| Working torque Range | 7-35 Nm | 5-27 |
| Working torque Range | 5-27 ft.lbs | 7-35 |
| Max torque | 35 Nm | 27 ft.lbs |
| Max torque | 27 ft.lbs | 35 Nm |
| Free speed | 270 rpm | |
| Net weight | 1.1 lb | 0.49 kg |
| Net weight | 0.49 kg | 1.1 lb |
| Length | 5.1" | 128 mm |
| Length | 128 mm | 5.1" |
| Average air consumption | 3 cfm | |
| Average air consumption | 1.4 l/s | 3 cfm |
| Actual air consumption | 12 cfm | 336 l/mn |
| Actual air consumption | 336 l/mn | 12 cfm |
| Actual air consumption | 5.6 l/s | 12 cfm |
| Air inlet thread size | 0.25 " | |
| Min. hose size | 3/8" | 10 mm |
| Min. hose size | 10 mm | 3/8" |
| Sound DBA pressure | 93 db(A) | |
| Sound pressure | 82 db(A) | |
| Vibration (ISO-8662-7) | 5,5 m/s² | |
| Vibration α (ISO-28927-2) | 5 m/s² | |
| Vibration K (ISO-28927-2) | 1.5 m/s² | |
Tags: CP9426
